Pressure boundary conditions

Problem description

Five different benchmarks are reported in which pressure boundary conditions are tested: an axisymmetric elastic cylinder, a plain strain elastic cylinder, an axisymmetric elastic sphere, a tri-dimensional elastic sphere and an axisymmetric elasto-plastic sphere. See this PDF for detailed problem description.

Results and evaluation

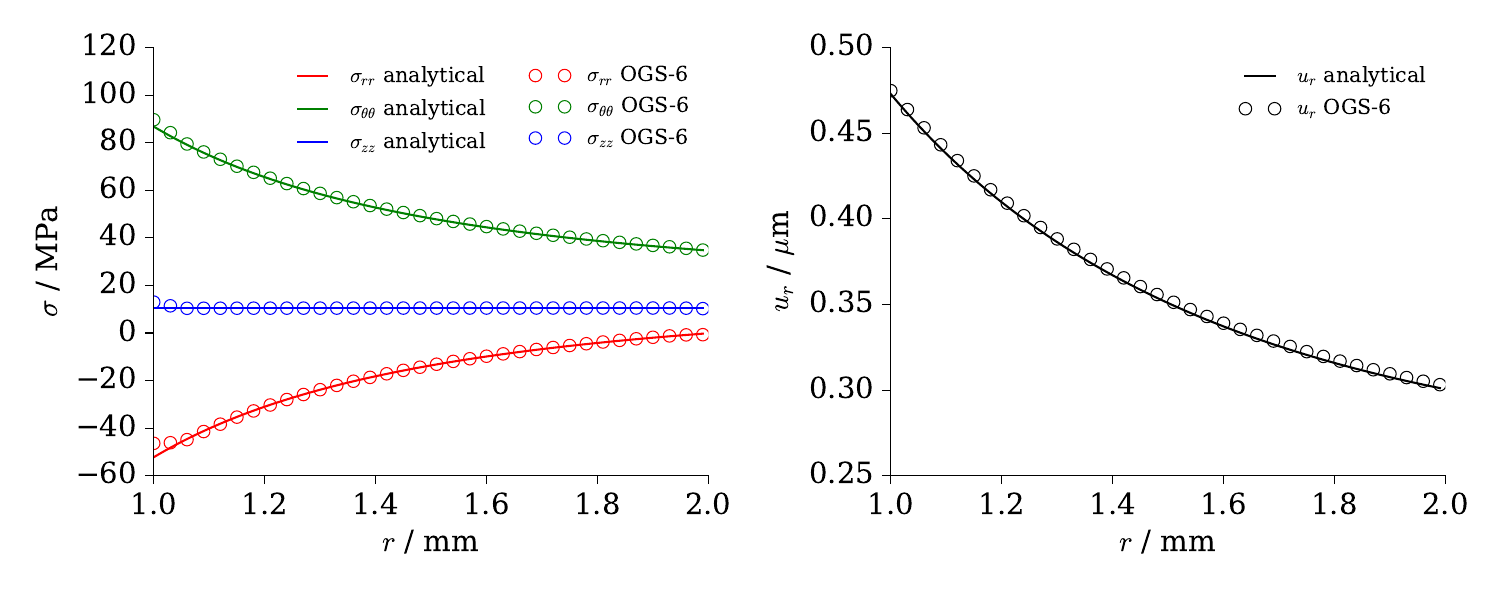

Plain strain elastic cylinder comparison between numerical and analytical results:

Axisymmetric elastic cylinder comparison between numerical and analytical results.

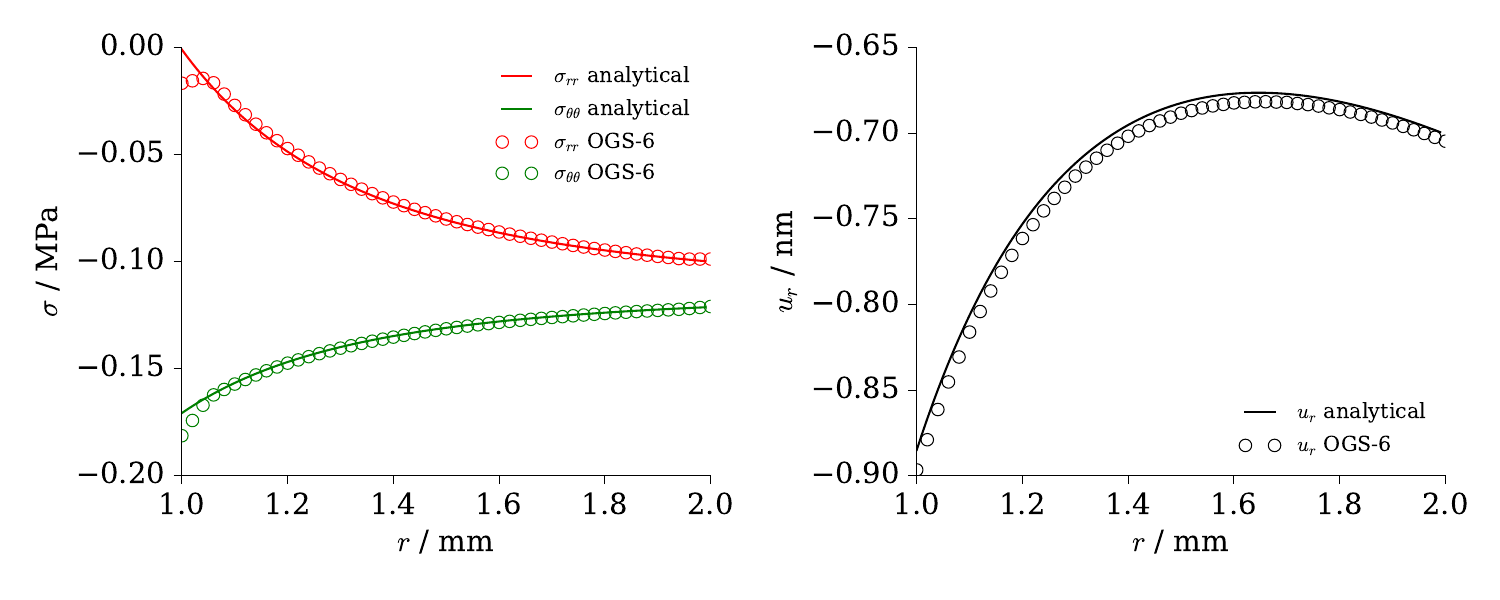

Axisymmetric elastic sphere comparison between numerical and analytical results:

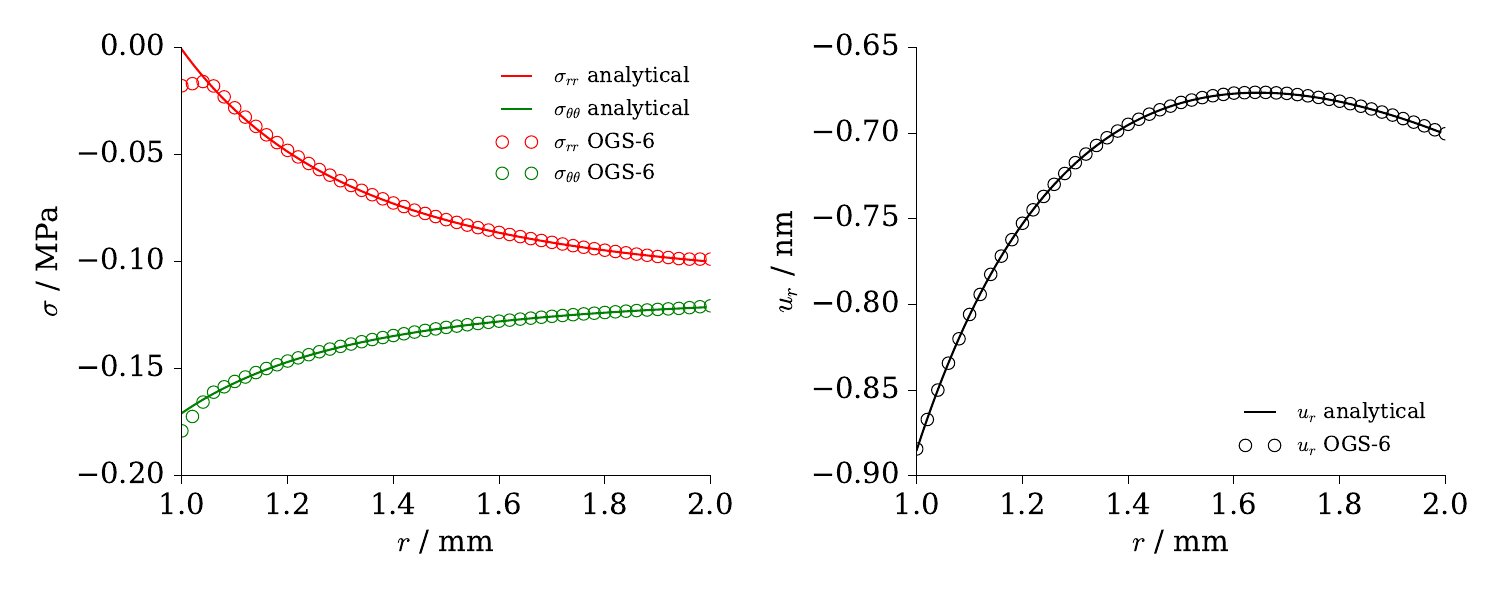

Tri-dimensional elastic sphere comparison between numerical and analytical results:

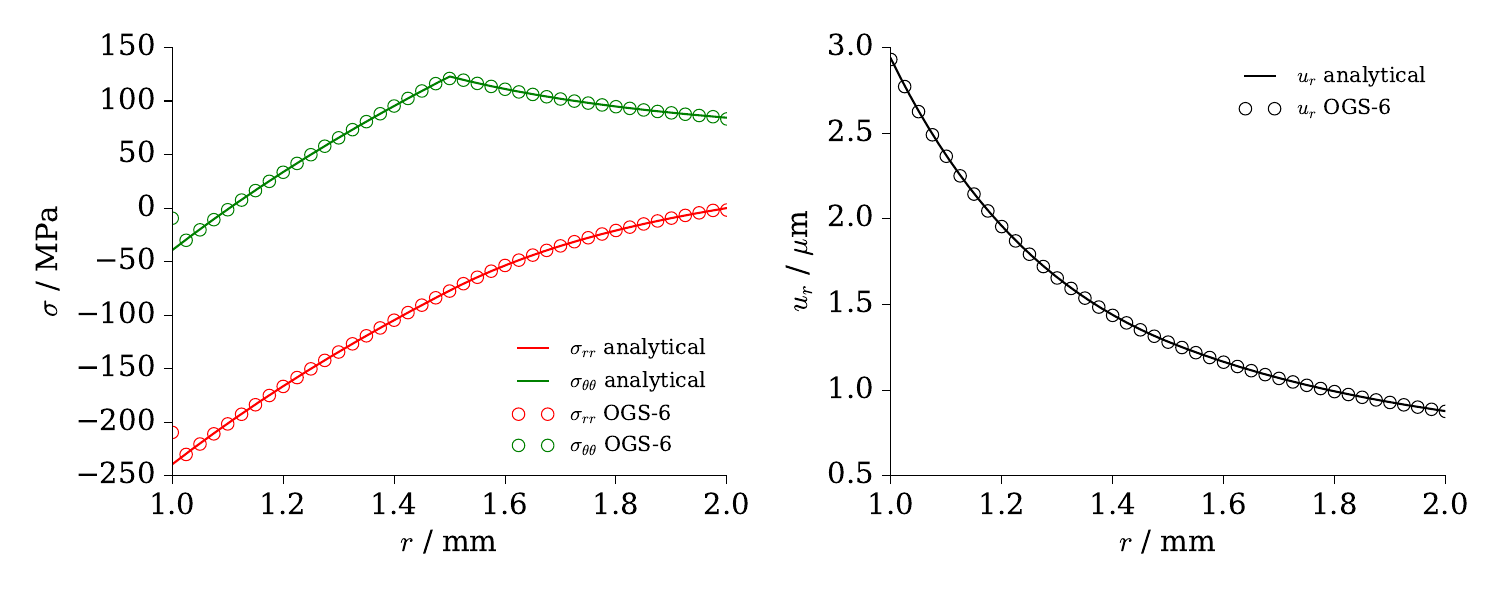

Axisymmetric plastic sphere comparison between numerical and analytical results:

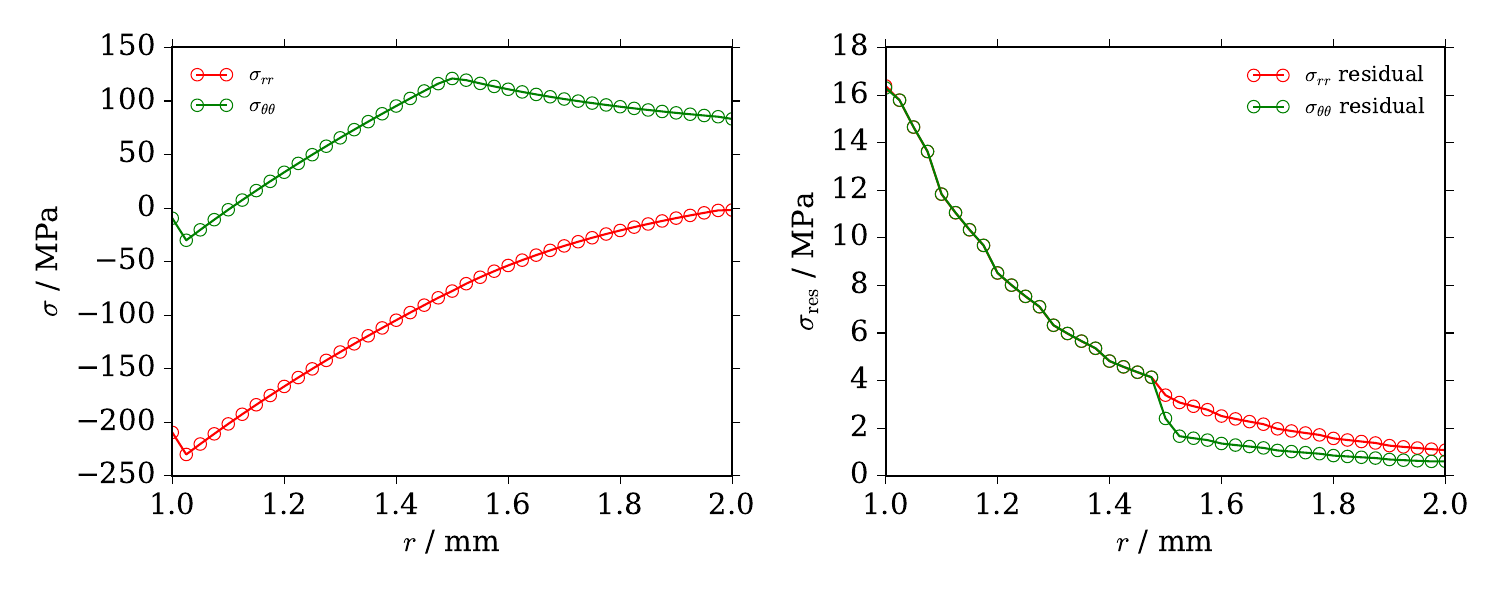

Axisymmetric plastic sphere residuals of stress:
