Ehlers; special case - Drucker-Prager
Problem description
The Ehlers material model can be reduced to the well-known criteria, such as the Drucker-Prager and von Mises. Here, we provide a Drucker-Prager model test as an additional verification of the Ehlers material model. The interested reader is referred to the document attached in the standard Ehlers material model test for obtaining more details.
Results and evaluation

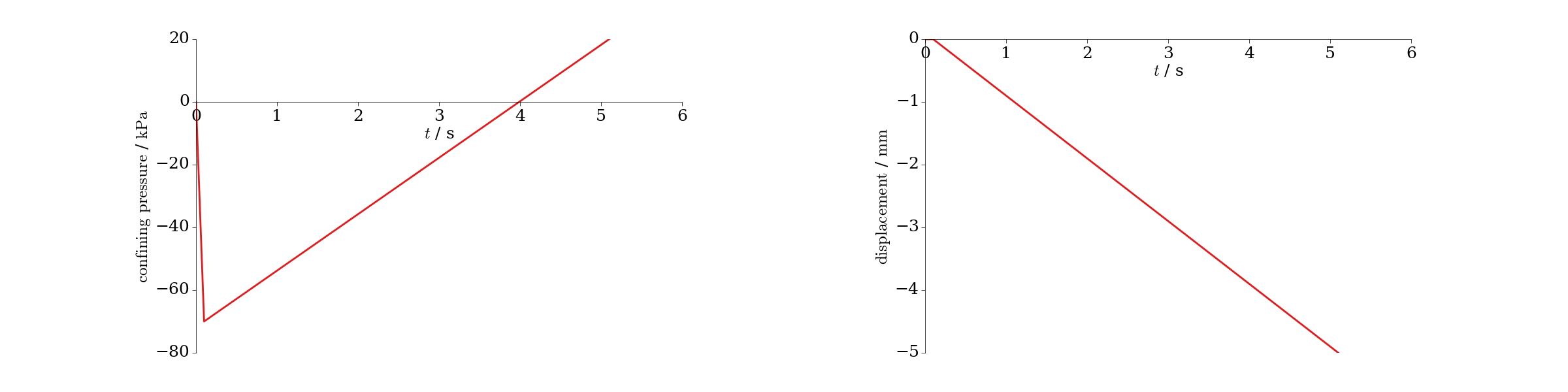

Triaxial compression test:

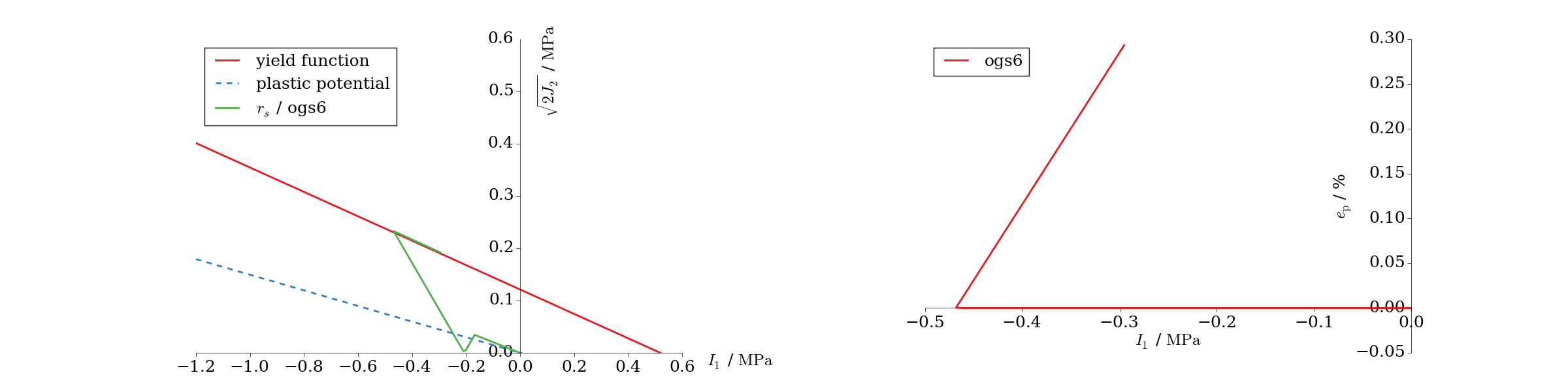

Variations of the stress states and the plastic volumetric strain with a monotonic loading process:
Community Discussion
The following comments are pulled in from our Discourse forum and contain community-generated content.
This article was written by Xing-Yuan Miao. If you are missing something or you find an error please reach out
to us on our forum.
