GocadSGridReader

Introduction

The tool GocadSGridReader reads a GOCAD stratigraphic grid (.sg) and writes the data in the open VTK unstructured grid file format (.vtu). The tool doesn’t change the geometry, i.e., it doesn’t change the element quality. Thus, the mesh may not be usable for finite mesh element simulations immediately.

The tool is part of the official OpenGeoSys git repository and is build when the OGS_BUILD_UTILS CMake switch is set ON. The build executable GocadSGridReader is placed in the bin directory. The tool is a command line tool.

Usage

Running GocadSGridReader tool will print the required arguments and a short usage message; for detailed usage add the --help argument.

bin/GocadSGridReader  -s <file_name.sg> -o <file_name.vtu>
                      [-f <true/false>] [--] [--version] [-h]

Where:

   -s <file_name.sg>,  --sg <file_name.sg>
     (required)  Gocad stratigraphic grid file name

   -o <file_name.vtu>,  --output-mesh <file_name.vtu>
     (required)  vtk unstructured grid file name

   -f <true/false>,  --generate-face-sets <true/false>
     generate face sets; default false, i.e. do not generate face sets

Example

GocadSGridReader -s flow_simulation_grid_klein_Rinne.sg -o flow_simulation_grid_klein_Rinne.vtu

Applications

Thuringia syncline (INFLUINS project)

Publication

@article{Fischer:2015,
 author = {Fischer, T. and Naumov, D. and Sattler, S. and Kolditz, O. and and Walther, M.},
 category = {Workflows},
 doi = {10.5194/gmd-8-3681-2015},
 journal = {Geosci. Model Dev.},
 pages = {3681–3694},

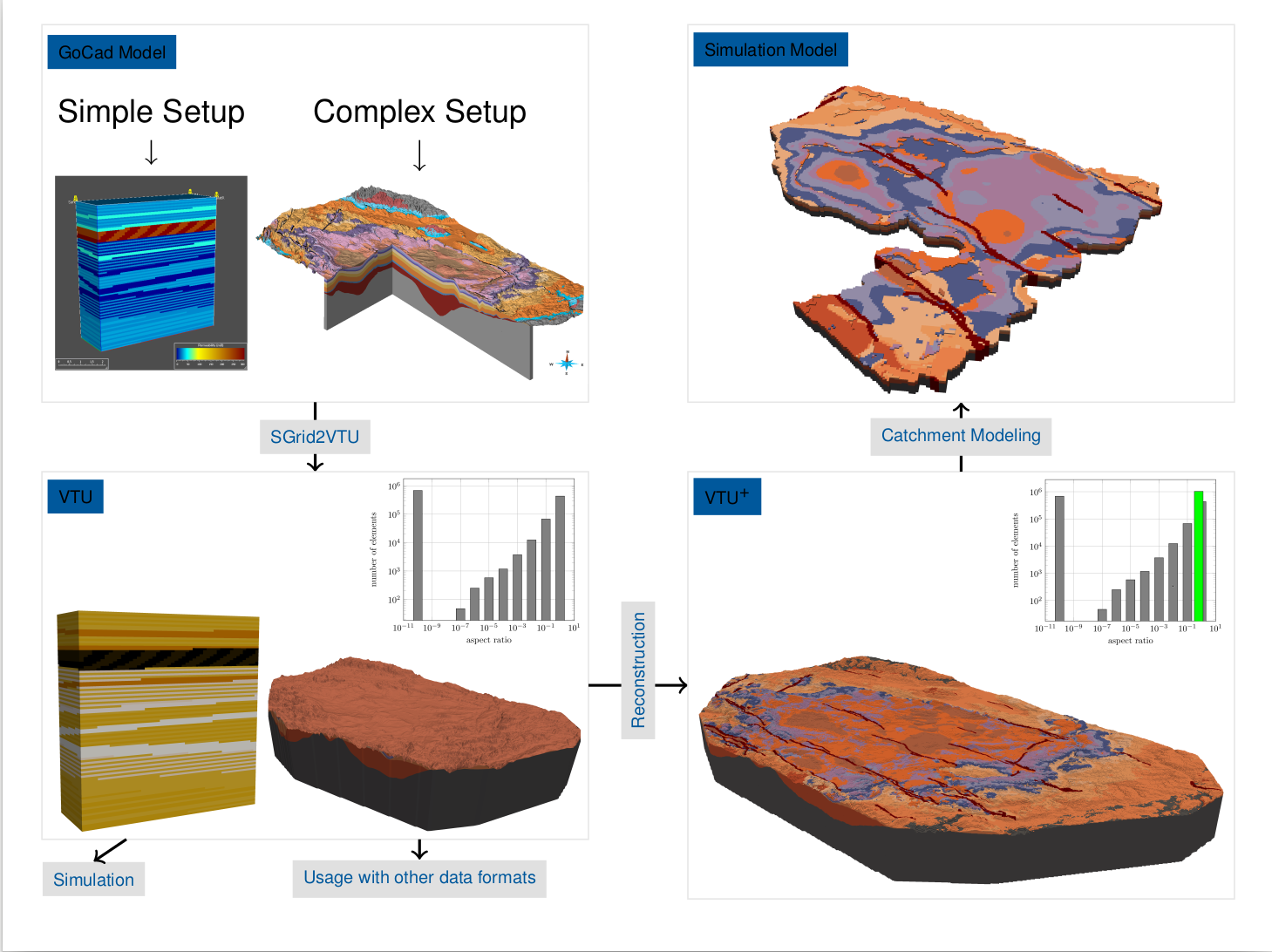

 title = {GO2OGS 1.0: a versatile workflow to integrate complex geological information with fault data into numerical simulation models},
 url = {https://www.geosci-model-dev.net/8/3681/2015/gmd-8-3681-2015.pdf},
 volume = {8},
 year = {2015}
}

Other

• Rotenburger Rinne (Geologischer Dienst für Niedersachsen, Referat Hydrogeologie Landesamt für Bergbau, Energie und Geologie, Jörg Elbracht)
• Heat storage model HH (Christian-Albrechts-Universität zu Kiel, Institut für Geowissenschaften, Janine Struß)
• Geothermal project (British Geological Survey, Richard Haslam)
