Jupyter notebooks as documentation and tests

The big picture

Jupyter notebooks are interactive computing environments where prose and code can be combined. In the OGS project notebooks can be used to define complex benchmark workflows and its results can be converted to be shown on the OGS web page (see an example here). Notebooks can be used in two ways:

  1. To directly generate a web page (direct conversion from notebook to web page).
  2. To be executed during CI whose results are converted to a web page.

1. Direct conversion

Consider direct conversion for the following use cases:

  • Execution of the notebook is very time-consuming (too long for regular CI tests).
  • The notebook uses Python packages which are not part of the testing environment (see Tests/Data/requirements*.txt for available packages).
  • The notebooks needs other custom tools or environment.
  • The shown functionality is not required to be regularly tested.

Create a new notebook

Create a new notebook file in web/contents/docs/[some-section]/my-page/my-page.ipynb. It is important that the notebook filename is the same as the containing folder name!

If you use additional images put them into the my-page-folder.

Add web meta information

If the notebook result should appear as a page on the web documentation a frontmatter with some meta information (similar to regular web pages) is required as the first cell in the notebook:

  • Add a new cell and move it to the first position in the notebook

  • Cell type needs to be markdown or raw

  • Add meta information e.g.:

    +++
    title = "BHE Meshing"
    date = "2023-08-18"
    author = "Joy Brato Shil, Haibing Shao"
    +++

Make sure that you execute the cells in the notebook and save the notebook (with generated outputs).

Preview locally

To get a preview of the web page run the convert_notebooks-script:

# You need the converter-tool nbconvert installed. Recommended way is to
# create and activate a virtual environment and install it there:
python -m venv .venv  # or `python3 -m ...` on some systems
source .venv/bin/activate # .\.venv\Scripts\Activate.ps1 on Windows
pip install nbconvert

python web/scripts/convert_notebooks.py

cd web
hugo server
# open http://localhost:1313

The notebook needs some meta information (only title, date and author is required) as outlined below.

Also make sure that you also provide necessary data files and please don’t use machine specific paths (e.g. assume that ogs and other tools are in the PATH).

2. Executed notebooks

These notebooks are part of the regular CI testing. Please try to keep the notebook execution time low.

Create a new notebook

Create a new notebook file in Tests/Data (if it should appear in the benchmark gallery) or in web/content/docs (e.g. for tutorials). Create it as a regular Markdown-file with Python code blocks. The notebook execution and conversion is done via Jupytext. See examples:

Add web meta information

If the notebook result should appear as a page on the web documentation a frontmatter with some meta information (similar to regular web pages) is required as the first cell in the notebook:

+++
title = "SimplePETSc"
date = "2021-11-09"
author = "Lars Bilke"
image = "optional_gallery_image.png"
web_subsection = "small-deformations" # required for notebooks in Tests/Data only
+++
  <-- Add Two newlines here to separate -->
  <-- the frontmatter as its own cell   -->
  • Frontmatter needs to be in TOML-format.
  • For notebooks describing benchmarks web_subsection needs to be set to a sub-folder in web/content/docs/benchmarks (if not set the notebook page will not be linked from navigation bar / benchmark gallery on the web page).
  • If you edit a Markdown-based notebook with Jupyter and the Jupytext extension please don’t add the two newlines but make sure that the frontmatter has its own cell (not mixed with markdown content).
  • For (deprecated) .ipynb-based notebooks the frontmatter needs to be given in the first cell. See existing notebooks (e.g. SimpleMechanics.ipynb) for reference.

Notebook setup

The first cell after the frontmatter needs to be a markdown-cell!

Markdown cells

  • HTML inside Markdown cells may be used for specific reasons (e.g. better image formatting).
  • For notebooks in Tests/Data only: Static images e.g. for the gallery image or to be used in Markdown cells have to be located in either images- or figures-subdirectories beneath the Notebook file! Otherwise they will not show up on the web site.
    • For image captions add a title in quotation marks after the image path, e.g.

      ![Alt text](figures/my_image.png "This will be the image caption.")
    • Please note that in merge request web previews static images are not shown at all.

Python cells

  • Do not use machine-specific or absolute paths! See the following example to set up notebook output paths:

    import os
    from pathlib import Path

    # On CI out_dir is set to the notebooks directory inside the build directory
    # similar to regular benchmark tests. On local testing it will output to the
    # notebooks source directory under a _out-subdirectory.
    out_dir = Path(os.environ.get("OGS_TESTRUNNER_OUT_DIR", "_out"))
    if not out_dir.exists():
        out_dir.mkdir(parents=True)

    # ...
    # Run ogs; get input data from current directory; write to `out_dir`
    ! ogs my_project.prj -o {out_dir} > {out_dir}/log.txt

    # OR with ogs6py:
    # ... setup model ...
    model.run_model(logfile=os.path.join(out_dir, "log.txt"), args=f"-o {out_dir}")

    # Verify results; on failure assert with:
    assert False
    # or
    raise SystemExit()
  • Do not write anything into the source directories. Use an out_dir as above.

  • Assume that ogs and other tools are in the PATH.

Execution environment

In CI the notebooks are executed with all dependencies installed into a virtual environment in the build directory. The installed packages are defined in Test/Data/requirements.txt. The same setup can be enabled locally by setting the CMake option OGS_USE_PIP=ON. E.g.

cmake --preset release -DOGS_USE_PIP=ON    # Creates the virtual environment
source ../build/release/.venv/bin/activate # Activates the virtual environment
jupyter lab                                # Starts Jupyter Lab

Register with CTest

Add the notebook to CTest (example) with e.g.:

if(NOT OGS_USE_PETSC)
    NotebookTest(NOTEBOOKFILE Mechanics/Linear/SimpleMechanics.ipynb RUNTIME 10)

    # Notebooks in web/content need to be prefixed with 'notebook-'!
    NotebookTest(NOTEBOOKFILE ../../web/content/docs/tutorials/bhe_meshing/notebook-bhe_meshing.md
                 PYTHON_PACKAGES openpyxl
                 RUNTIME 10)
endif()
  • NOTEBOOKFILE is relative to Tests/Data.
  • If your notebook requires additional dependencies add them with PYTHON_PACKAGES.
  • If the notebook is in web/content it is important to prefix the notebook file name with notebook-! The prefix is required to indicate Hugo that this is a notebook and not a regular markdown page.

If your notebook should not appear on the website add the SKIP_WEB-option to NotebookTest(). This may be useful if the notebook serves as CI test only, e.g. comparing multiple simulation runs or doing performance measurements. But please also note that there will be no artifact produced (except for notebook errors which get reported as usual).

Then e.g. run all notebook test (-R nb) in parallel (-j 4) with:

# cd into build directory
source .venv/bin/activate # Is created with OGS_USE_PIP=ON, see above note on environment.
ctest -R nb -j 4 --output-on-failure

Advanced topics

Jupytext usage

If you use the execution environment Jupytext is already configured and its usage is transparent:

  • Double-click on a markdown file will open it as a Notebook
  • Upon saving or executing a linked .ipynb-file is created in the background which stores outputs
  • You still edit the Markdown file but don’t notice the difference to regular notebooks in the Lab UI

Run a notebook in BinderHub

On the web site or MR web previews on pages generated by a notebook there is a new banner:

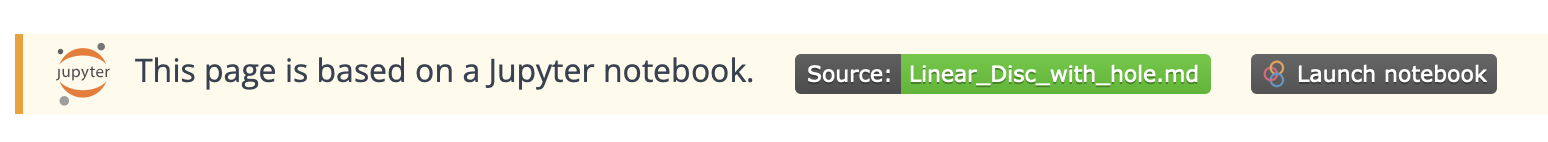

Notebook web banner with BinderHub launch button

  • Click the button to launch the notebook in BinderHub.
  • The environment running in BinderHub is defined in bilke/binder-ogs-requirements at GitHub
  • When clicking the link it launches a Jupyter Lab instance pre-configured with ogs via wheel, clones the current ogs repo in it and opens the respective notebook ready to run. Please note that startup times may be several minutes and the computing resources are limited (1 core, 2GB RAM). For improved performance we would need to setup own infrastructure. Also currently only works for serial ogs configurations.

PyVista notebooks on headless Linux systems

PyVista (or VTK) requires a windowing environment for rendering. You can provide a virtual window with xvfb-run:

sudo apt install libgl1-mesa-glx xvbf # install xvfb

xvfb-run -a ctest [...] # provide a virtual window to the ctest-run

This article was written by Lars Bilke. If you are missing something or you find an error please let us know.
