Simulating the Selke 2D process with heterogeneous aquifer and Robin boundary conditions

This page is based on a Jupyter notebook.

Simulating the Selke 2D process with heterogeneous aquifer and Robin boundary conditions

The River Selke is a fourth-order stream with a length of 64 km draining a part of the forested Harz Mountains and the agriculturally dominated Northern Harz foreland in Central Germany. Due to different water management targets such as the design of infiltration wells along a former pit mine the area is of particular interest for hydrogeological research (cf. Nixdorf et al., 2025 ) In this notebook we show how to append the previous notebook on the Selke 2D process with Neumann boundary conditions to model a heterogeneous aquifer and Robin boundary constraints

from pathlib import Path(click to toggle)
from pathlib import Path

import numpy as np
import ogstools as ot
import pyvista as pv

ot.plot.setup.show_region_bounds = False

1 Load data and run Dirichlet/Neumann simulation

We begin by loading the necessary meshes and the project file for the Selke 2D process with Dirichlet and Neumann boundary conditions which we want to modify.
Note, that we use a different domain mesh than before which contains two instead of one MaterialID which allows us to differentiate between Quaternary and non-Quaternary Materials

project_robin = ot.Project("Selke_Basin.prj").copy()(click to toggle)
project_robin = ot.Project("Selke_Basin.prj").copy()
# We need to add the changes we've made in the previous notebook. To do this we add an xml patch during execution of the models
execution_patch = ot.Execution(
    args="-p " + str(Path.cwd().resolve() / "neumann_patch.xml")
)
input_meshes = [
    "Selke_Basin_Domain_2ids.vtu",
    "Selke_Basin_PG_Concordia.vtu",
    "Selke_Basin_PG_Koenigsauer.vtu",
    "Selke_Basin_PG_Wilsleber.vtu",
    "Selke_Basin_PL_Bode.vtu",
    "Selke_Basin_PL_Wipper.vtu",
    "Selke_Basin_Pnt_Wells.vtu",
    "Selke_Basin_PL_Selke.vtu",
    "Selke_Basin_PL_Upstream.vtu",
    "Selke_Basin_PG_recharge.vtu",
]
meshes_robin = ot.Meshes.from_files(input_meshes)
output_names_dict = {
    "Selke_Basin_Domain_2ids": "Selke Basin",
    "Selke_Basin_PG_Concordia": "Lake Concordia",
    "Selke_Basin_PG_Koenigsauer": "Lake Königsauer",
    "Selke_Basin_PG_Wilsleber": "Lake Wilsleber",
    "Selke_Basin_PL_Bode": "River Bode",
    "Selke_Basin_PL_Wipper": "River Wipper",
    "Selke_Basin_Pnt_Wells": "Wells",
    "Selke_Basin_PL_Selke": "River Selke",
    "Selke_Basin_PL_Upstream": "Upstream",
    "Selke_Basin_PG_recharge": "Selke Basin Recharge",
}
meshes_robin.rename_output_names(output_names_dict)

2 Modify the project file

2.1 Changing to heterogeneous aquifer

We begin by replacing the reference to the old homogeneous mesh with the new 2 MaterialID mesh
Material ID 0 represents the Quaternary medium, MaterialID 1 the non-Quaternary

project_robin.replace_mesh("Selke_Basin_Domain_homo.vtu", "Selke_Basin_Domain_2ids.vtu")(click to toggle)
project_robin.replace_mesh("Selke_Basin_Domain_homo.vtu", "Selke_Basin_Domain_2ids.vtu")
# Visualise MaterialIDs of new domain mesh

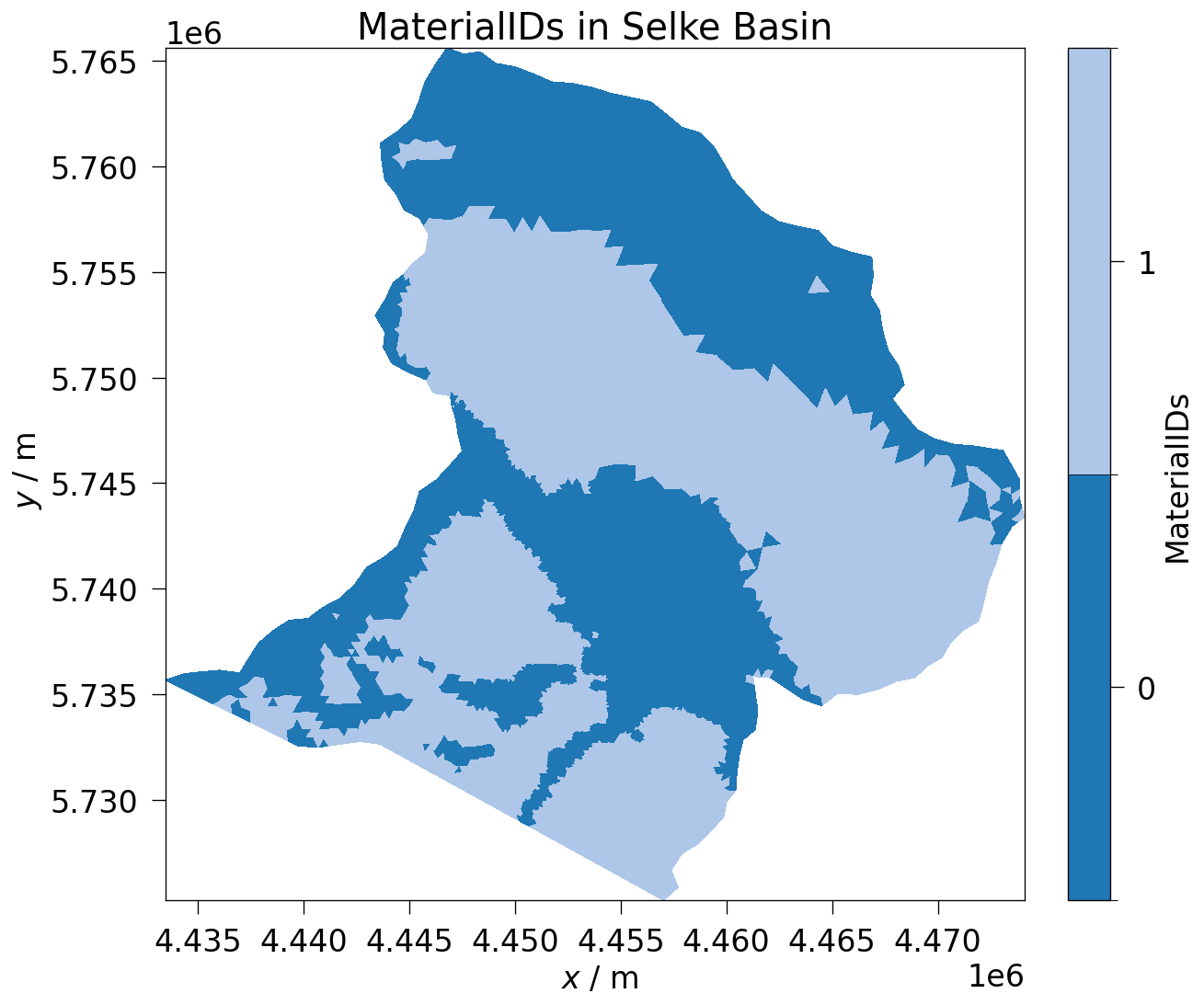

fig_material_ids = ot.plot.contourf(
    meshes_robin.domain, "MaterialIDs", fontsize=20, show_edges=False
)
fig_material_ids.axes[0].set_title(
    "MaterialIDs in Selke Basin",
    fontsize=24,
    loc="center",
)
Text(0.5, 1.0, 'MaterialIDs in Selke Basin')

png

After this, we add all required properties to the new medium of id 1

# When we add a property to a previously non-existent medium_id and phase type, OGSTools creates the new medium and phase automatically.(click to toggle)
# When we add a property to a previously non-existent medium_id and phase type, OGSTools creates the new medium and phase automatically.
project_robin.media.add_property(
    medium_id="1",
    phase_type="AqueousLiquid",
    name="viscosity",
    type="Constant",
    value=0.0011373,
)
project_robin.media.add_property(
    medium_id="1",
    phase_type="AqueousLiquid",
    name="density",
    type="Constant",
    value=1000,
)
project_robin.media.add_property(
    medium_id="1", name="permeability", type="Constant", value=9.5e-11
)
project_robin.media.add_property(
    medium_id="1", name="reference_temperature", type="Constant", value=288.15
)
project_robin.media.add_property(
    medium_id="1", name="porosity", type="Constant", value=0.05
)
project_robin.media.add_property(
    medium_id="1", name="storage", type="Constant", value=0
)

We also set the permeability of the Quaternary medium to $5\cdot 10^{-9}$

project_robin.replace_medium_property_value(0, "permeability", 5e-9)

2.2 Adding Robin boundary conditions

The current Dirichlet boundary conditions we use to characterise the rivers overvalues groundwater.
We therefore want to change the project file to use Robin boundary conditions, which are given by

$$\begin{equation} Q_{ex}=K\cdot W\cdot L\cdot \frac{H_{SW}-H_{GW}}{M}\end{equation}$$

In OGS, the value $\frac{K\cdot W\cdot L}{M}$ is combined into the single parameter bed_conductance

project_robin.parameters.add_parameter((click to toggle)
project_robin.parameters.add_parameter(
    name="bed_conductance",
    type="Constant",
    value=5e-9,
)
# We first have to remove the obsolete boundary conditions
project_robin.remove_element(
    ".//boundary_conditions/boundary_condition[mesh='Selke_Basin_PL_Selke']"
)
project_robin.remove_element(
    ".//boundary_conditions/boundary_condition[mesh='Selke_Basin_PL_Wipper']"
)
project_robin.remove_element(
    ".//boundary_conditions/boundary_condition[mesh='Selke_Basin_PL_Bode']"
)
# Now we can readd the improved boundary conditions
project_robin.process_variables.add_bc(
    process_variable_name="pressure",
    type="Robin",
    mesh="Selke_Basin_PL_Bode",
    u_0="p_river_bode",
    alpha="bed_conductance",
)
project_robin.process_variables.add_bc(
    process_variable_name="pressure",
    type="Robin",
    mesh="Selke_Basin_PL_Selke",
    u_0="p_river_selke",
    alpha="bed_conductance",
)
project_robin.process_variables.add_bc(
    process_variable_name="pressure",
    type="Robin",
    mesh="Selke_Basin_PL_Wipper",
    u_0="p_river_wipper",
    alpha="bed_conductance",
)

3 Running the model and analysis

3.1 Running the heterogeneous Robin model

Having finished the setup, we now build and run the model and show the hydraulic head at the final timestep

model_robin = ot.Model((click to toggle)
model_robin = ot.Model(
    project=project_robin, meshes=meshes_robin, execution=execution_patch
)
sim_robin = model_robin.run()
print(f"Simulation status: {sim_robin.status_str}")
assert sim_robin.status == ot.Simulation.Status.done
Simulation status: Status: completed successfully (results available)
sim_robin.meshseries.scale(spatial="km", time="d")(click to toggle)
sim_robin.meshseries.scale(spatial="km", time="d")
sim_robin.meshseries.point_data["hydraulic head h / m"] = (
    sim_robin.meshseries.point_data["pressure"] / (1000 * 9.81)
)
for mesh in sim_robin.meshseries:
    mesh.point_data["depth to groundwater h / m"] = (
        mesh.points[:, 2] * 1000 - mesh.point_data["hydraulic head h / m"]
    )
fig_robin = ot.plot.contourf(
    sim_robin.meshseries[-1], "hydraulic head h / m", fontsize=20
)
fig_robin.axes[0].set_title(

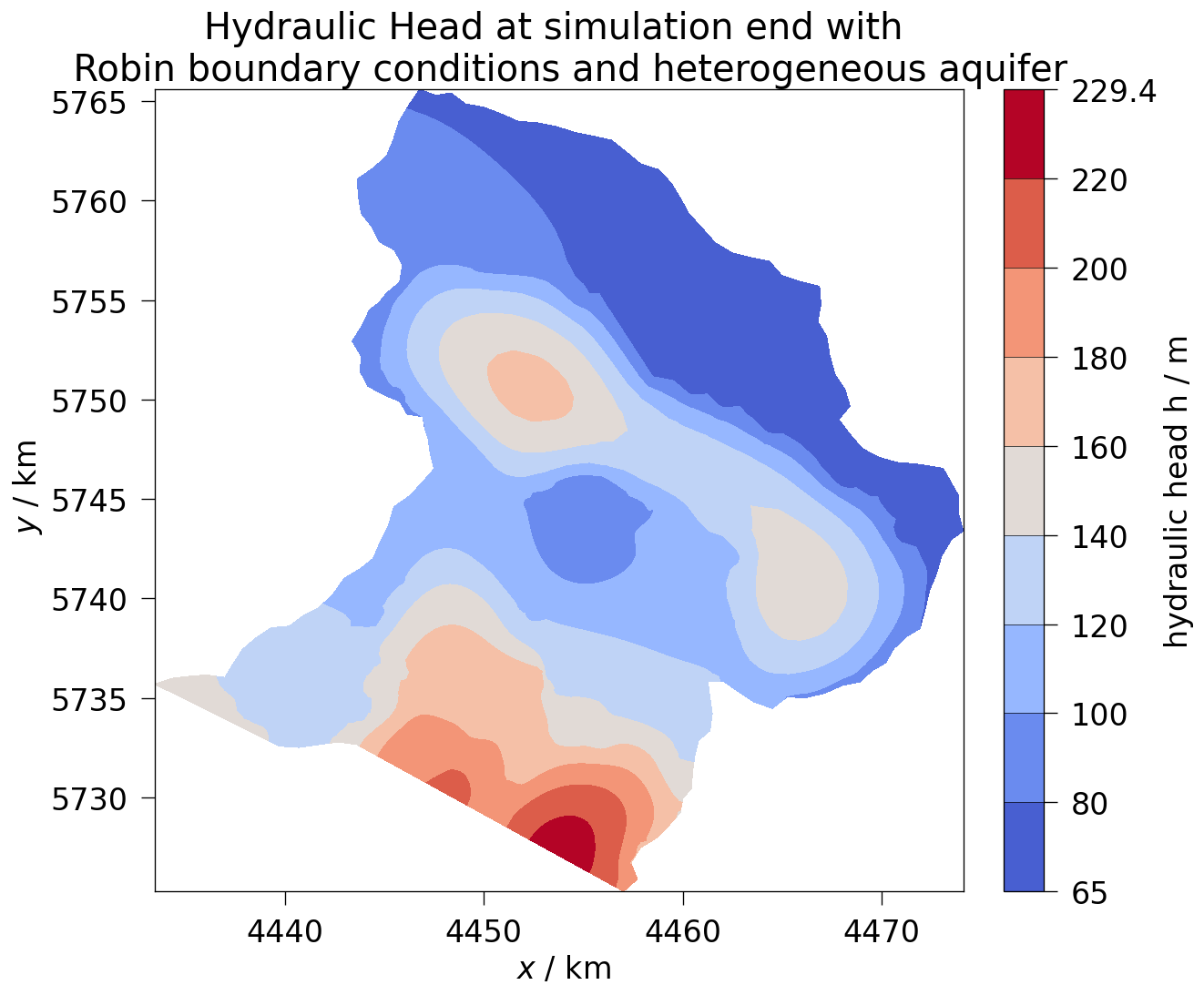

    "Hydraulic Head at simulation end with \n  Robin boundary conditions and heterogeneous aquifer",
    fontsize=24,
    loc="center",
)
fig_robin = ot.plot.contourf(
    sim_robin.meshseries[-1], "depth to groundwater h / m", fontsize=20
)
fig_robin.axes[0].set_title(

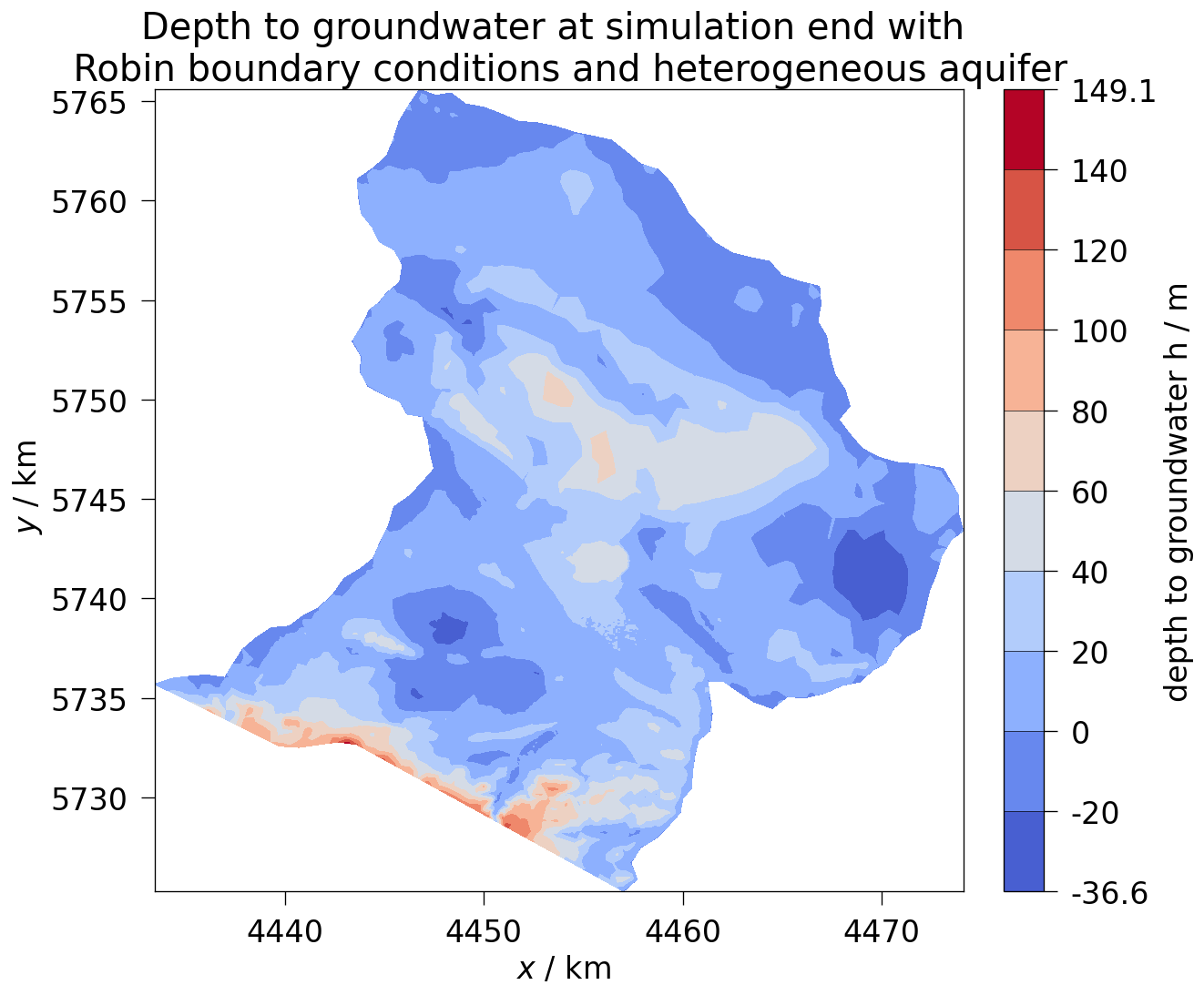

    "Depth to groundwater at simulation end with \n  Robin boundary conditions and heterogeneous aquifer",
    fontsize=24,
    loc="center",
)
Text(0.5, 1.0, 'Depth to groundwater at simulation end with \n  Robin boundary conditions and heterogeneous aquifer')

png

png

3.2 Comparison with Dirichlet + Neumann Model

We set up and run the previous simulation as a point of comparison.
Having done that, we can show the differences both in hydraulic head as well as depth to groundwater between the two simulations

project_neumann = ot.Project("Selke_Basin.prj").copy()(click to toggle)
project_neumann = ot.Project("Selke_Basin.prj").copy()
# Load Meshes
input_meshes_neumann = [
    "Selke_Basin_Domain_homo.vtu",
    "Selke_Basin_PG_Concordia.vtu",
    "Selke_Basin_PG_Koenigsauer.vtu",
    "Selke_Basin_PG_Wilsleber.vtu",
    "Selke_Basin_PL_Bode.vtu",
    "Selke_Basin_PL_Wipper.vtu",
    "Selke_Basin_Pnt_Wells.vtu",
    "Selke_Basin_PL_Selke.vtu",
    "Selke_Basin_PL_Upstream.vtu",
    "Selke_Basin_PG_recharge.vtu",
]
meshes_neumann = ot.Meshes.from_files(input_meshes_neumann)
# Set up and run Dirichlet simulation
model_neumann = ot.Model(
    project=project_neumann, meshes=meshes_neumann, execution=execution_patch
)
sim_neumann = model_neumann.run()
assert sim_neumann.status == ot.Simulation.Status.done
sim_neumann.meshseries.scale(spatial="km", time="d")
sim_neumann.meshseries.point_data["hydraulic head h / m"] = (
    sim_neumann.meshseries.point_data["pressure"] / (1000 * 9.81)
)
for mesh in sim_neumann.meshseries:
    mesh.point_data["depth to groundwater h / m"] = (
        mesh.points[:, 2] * 1000 - mesh.point_data["hydraulic head h / m"]
    )
series_diff = ot.MeshSeries.difference(
    ms_a=sim_robin.meshseries, ms_b=sim_neumann.meshseries
)
fig_difference_head = ot.plot.contourf(
    series_diff[-1],
    "hydraulic head h / m",
    fontsize=20,
)
fig_difference_head.axes[0].set_title(

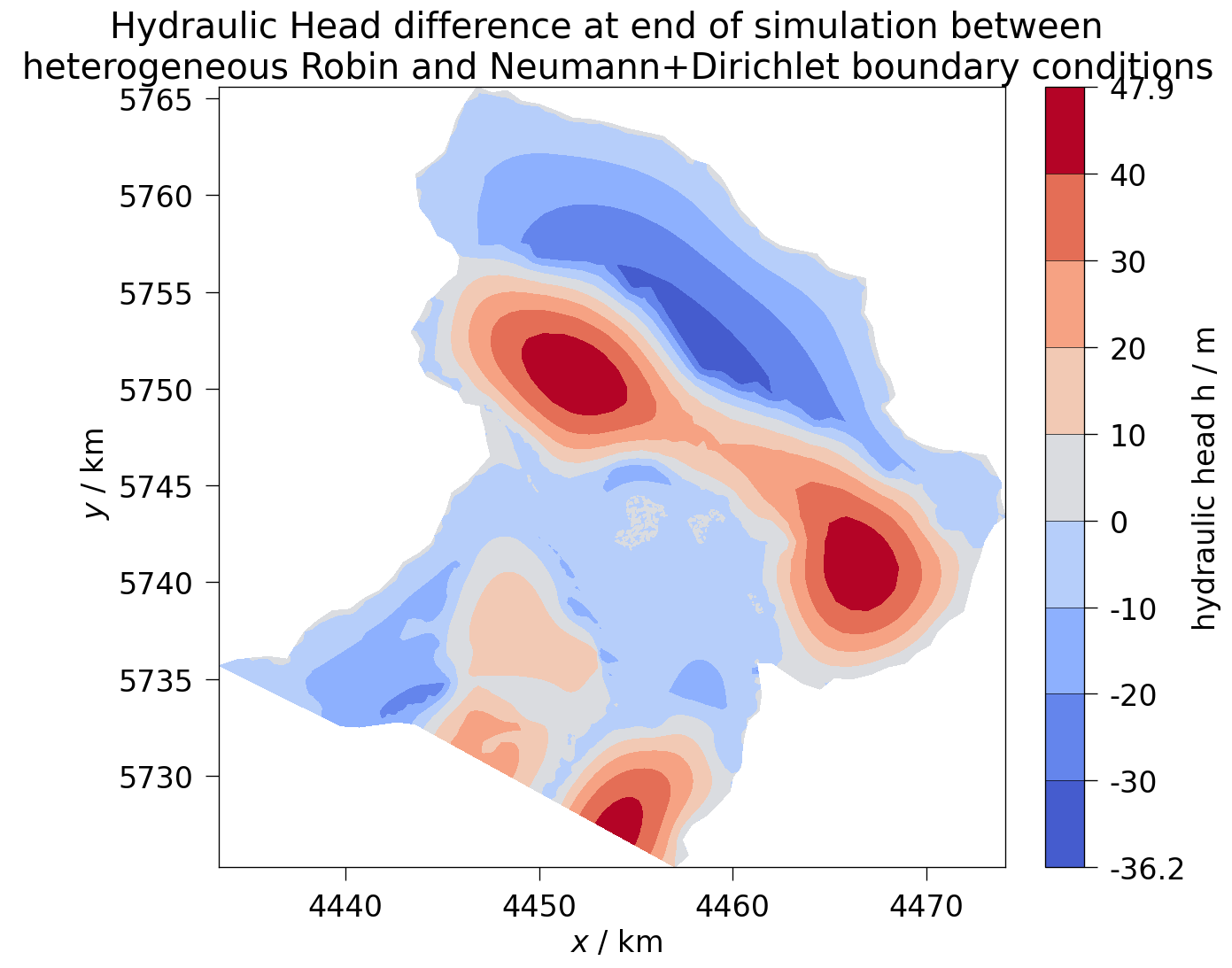

    "Hydraulic Head difference at end of simulation between \n heterogeneous Robin and Neumann+Dirichlet boundary conditions",
    fontsize=24,
    loc="center",
)
fig_difference_groundwater = ot.plot.contourf(
    series_diff[-1],
    "depth to groundwater h / m",
    fontsize=20,
)
fig_difference_groundwater.axes[0].set_title(

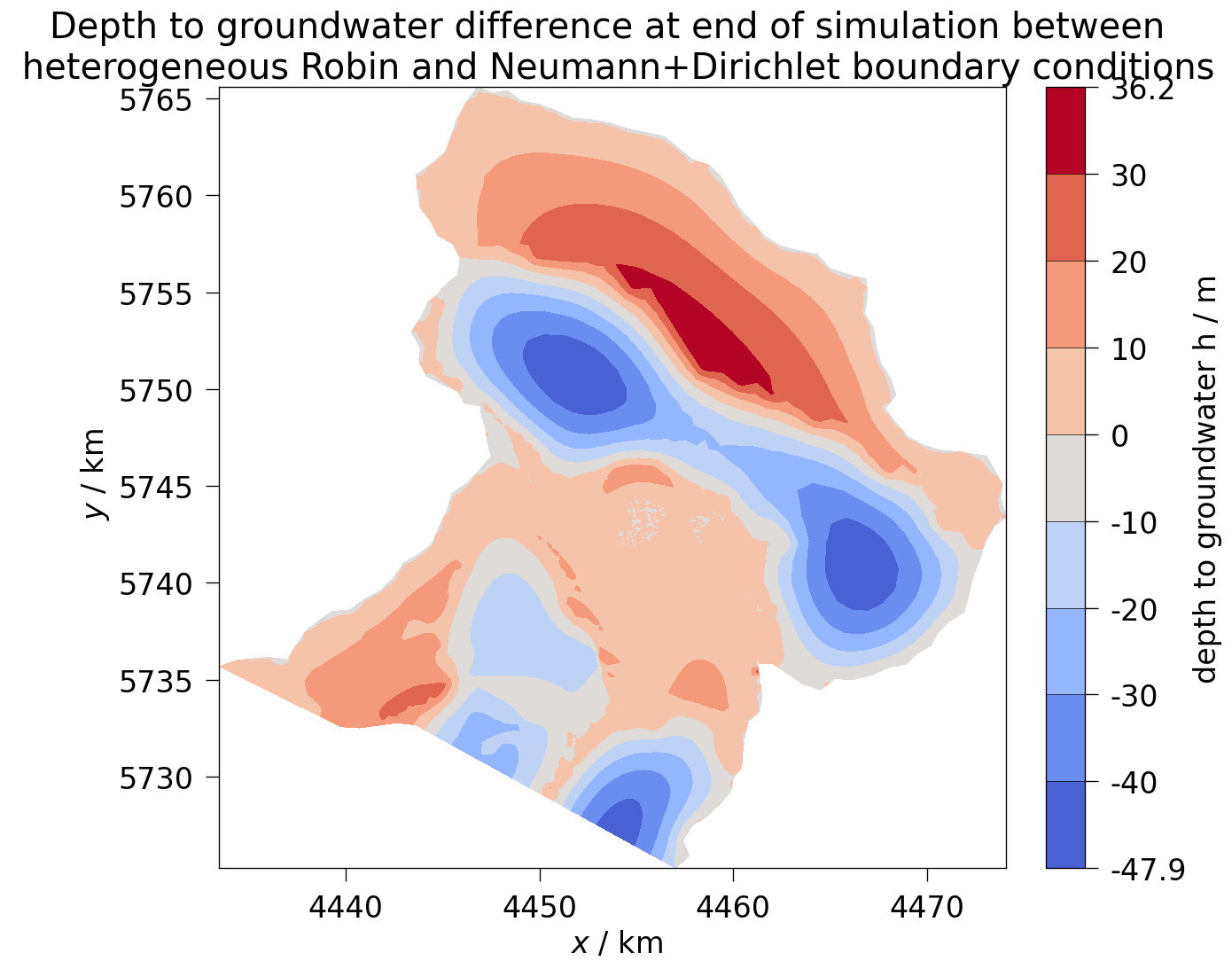

    "Depth to groundwater difference at end of simulation between \n heterogeneous Robin and Neumann+Dirichlet boundary conditions",
    fontsize=24,
    loc="center",
)
Text(0.5, 1.0, 'Depth to groundwater difference at end of simulation between \n heterogeneous Robin and Neumann+Dirichlet boundary conditions')

png

png

# Check that simulations have produced expected outputs(click to toggle)
# Check that simulations have produced expected outputs
# The same test as at the end of the previous notebook. Since we had to run the Neumann simulation again for comparison, we check its outputs again.
sim_neumann_expected = pv.read("expected_neumann.vtu")
np.testing.assert_allclose(
    sim_neumann.meshseries[-1]["pressure"], sim_neumann_expected["pressure"], rtol=4e-3
)
# Test of the new simulation
sim_robin_expected = pv.read("expected_robin.vtu")
np.testing.assert_allclose(
    sim_robin.meshseries[-1]["pressure"], sim_robin_expected["pressure"], rtol=4e-3
)

References

  • Nixdorf, E., Sips, M., & Morstein, P. (2025). Development of a digital workflow for layer reduction strategies and visual-analytical outcome analysis to enhance geo-hydraulic modelling efficiency. Digital Water, 3(1), 1-24. doi:10.1080/28375807.2025.2460825

This article was written by Erik Nixdorf, Niklas Ritter. If you are missing something or you find an error please reach out to us on our forum.
