BENCHMARKS
Kozeny-Carman for ComponentTransport
This page is based on a Jupyter notebook.
This notebook defines a minimal 1D ComponentTransport problem to verify the Kozeny-Carman constitutive update under controlled hydraulic loading.
The pressure boundary conditions are prescribed as
$$ p_{\text{inlet}} = 110000\ \text{Pa}, \qquad p_{\text{outlet}} = 100000\ \text{Pa}. $$Permeability is evaluated using the Kozeny-Carman relation
$$ k_{\text{KozenyCarman}} = k_0 \left(\frac{1-\phi_0}{1-\phi}\right)^2 \left(\frac{\phi}{\phi_0}\right)^3, $$with initial values $k_0$ and $\phi_0$, and time-dependent porosity
$$ \phi(t)= \begin{cases} 0.10, & t < 0.51\ \text{s},\\ 0.50, & t \ge 0.51\ \text{s}. \end{cases} $$
import os…
(click to toggle)
import os
import xml.etree.ElementTree as ET
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import ogstools as otout_dir = Path(os.environ.get("OGS_TESTRUNNER_OUT_DIR", "_out"))
out_dir.mkdir(parents=True, exist_ok=True)Run OpenGeoSys
prj_in = "Kozeny_Carman_NonChemical.prj"…
(click to toggle)
prj_in = "Kozeny_Carman_NonChemical.prj"
model = ot.Project(input_file=prj_in, output_file=out_dir / prj_in)
model.write_input()
model.run_model(
logfile=out_dir / "ogs.log",
args=f"-o {out_dir} -m .",
) ogs -o /var/lib/gitlab-runner/builds/K-X1vcp78/0/ogs/build/release-all/Tests/Data/Parabolic/ComponentTransport/ReactiveTransport/Porositychange/Kozeny_Carman_NonChemical -m . /var/lib/gitlab-runner/builds/K-X1vcp78/0/ogs/build/release-all/Tests/Data/Parabolic/ComponentTransport/ReactiveTransport/Porositychange/Kozeny_Carman_NonChemical/Kozeny_Carman_NonChemical.prj
['ogs', '-o', '/var/lib/gitlab-runner/builds/K-X1vcp78/0/ogs/build/release-all/Tests/Data/Parabolic/ComponentTransport/ReactiveTransport/Porositychange/Kozeny_Carman_NonChemical', '-m', '.', '/var/lib/gitlab-runner/builds/K-X1vcp78/0/ogs/build/release-all/Tests/Data/Parabolic/ComponentTransport/ReactiveTransport/Porositychange/Kozeny_Carman_NonChemical/Kozeny_Carman_NonChemical.prj']
<Popen: returncode: 0 args: ' ogs -o /var/lib/gitlab-runner/builds/K-X1vcp78...>
Post-processing
Read project constants
tree = ET.parse(prj_in)…
(click to toggle)
tree = ET.parse(prj_in)
root = tree.getroot()
def get_parameter_value(name: str) -> float:
for p in root.findall("./parameters/parameter"):
pname = p.findtext("name")
if pname == name:
return float(p.findtext("value"))
msg = f"Parameter '{name}' not found."
raise KeyError(msg)
phi0 = get_parameter_value("poro0")
k0 = get_parameter_value("kappa0")
print(f"phi0 = {phi0}")
print(f"k0 = {k0:.3e} m^2")phi0 = 0.1
k0 = 1.000e-14 m^2
Load OGS output
pvd_file = out_dir / "simple1d_kozeny.pvd"…
(click to toggle)
pvd_file = out_dir / "simple1d_kozeny.pvd"
ms = ot.MeshSeries(pvd_file)
times = np.asarray(ms.timevalues, dtype=float)
phi_vals = np.nanmean(ms.cell_data["porosity_avg"], axis=1)
k_ogs = np.nanmean(ms.cell_data["permeability_avg"], axis=1)
k_theory = k0 * ((1.0 - phi0) / (1.0 - phi_vals)) ** 2 * (phi_vals / phi0) ** 3
err_rel = np.abs(k_ogs - k_theory) / np.maximum(np.abs(k_theory), 1e-30)Observation point over time

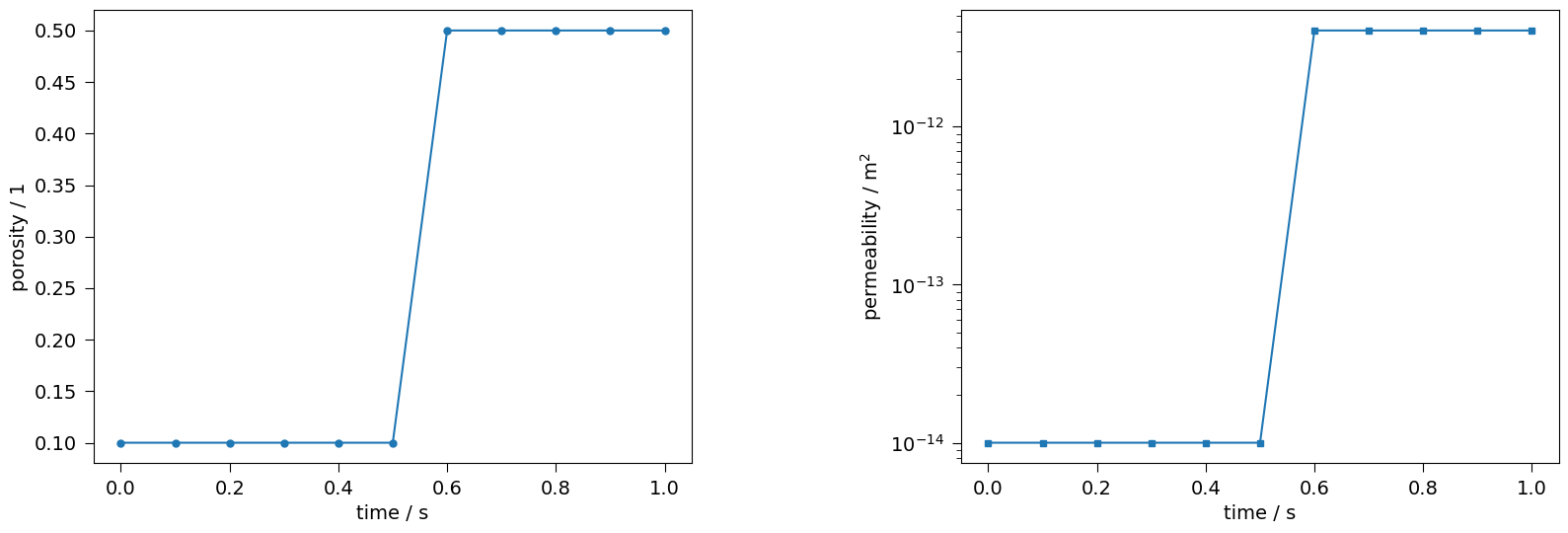

obs_point = ms.mesh(0).cell_centers().points[[0]]…
(click to toggle)
obs_point = ms.mesh(0).cell_centers().points[[0]]
phi_obs = ot.MeshSeries.probe(ms, obs_point, data_name="porosity_avg").values(
"porosity_avg"
)
k_obs = ot.MeshSeries.probe(ms, obs_point, data_name="permeability_avg").values(
"permeability_avg"
)
fontsize = 14
fig_obs, (ax_phi, ax_k) = plt.subplots(1, 2, figsize=(16, 5.5))
ax_phi.plot(times, np.ravel(phi_obs), marker="o", ms=5)
ax_k.plot(times, np.ravel(k_obs), marker="s", ms=5)
ax_phi.set_ylabel("porosity / 1")
ax_k.set_ylabel("permeability / m$^2$")
ax_k.set_yscale("log")
for ax in (ax_phi, ax_k):
ax.set_xlabel("time / s")
ot.plot.utils.update_font_sizes(ax, fontsize=fontsize)
fig_obs.tight_layout()
fig_obs.subplots_adjust(wspace=0.45)
plt.show()

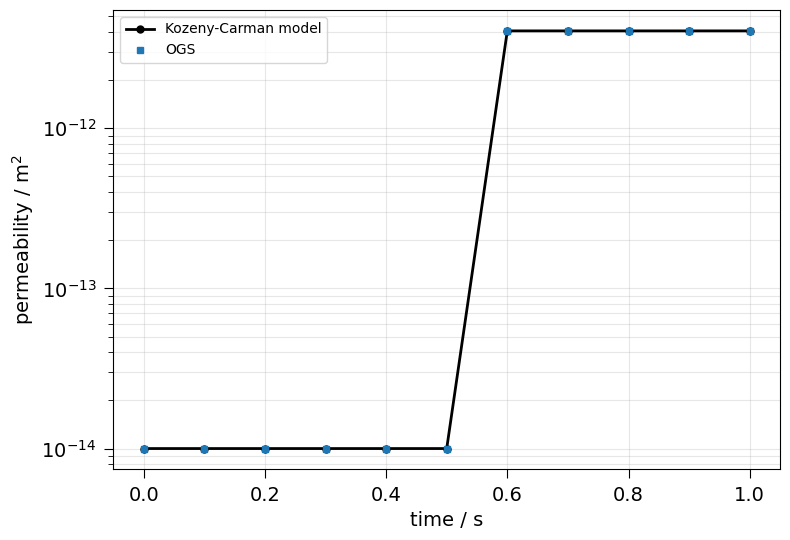

Compare Kozeny-Carman and OGS permeability
At each time step, the theoretical value $k_{\text{KozenyCarman}}$ is compared against the simulated value $k_{\text{OGS}}$ (from permeability_avg) through the relative error
The verification objective is constitutive consistency: $k_{\text{OGS}} \approx k_{\text{KozenyCarman}}$ and $e_{\text{rel}}$ should remain close to zero.
if not (np.all(np.isfinite(k_ogs)) and np.all(np.isfinite(k_theory))):…
(click to toggle)
if not (np.all(np.isfinite(k_ogs)) and np.all(np.isfinite(k_theory))):
msg = (
"permeability contains non-finite values; this benchmark's mesh has no "
"inactive elements, so a NaN/inf here indicates a regression."
)
raise RuntimeError(msg)
fig_cmp, ax_cmp = plt.subplots(figsize=(8, 5.5))
ax_cmp.plot(
times,
k_theory,
"k-o",
lw=2,
ms=5,
label="Kozeny-Carman model",
)
ax_cmp.plot(times, k_ogs, "s", ms=5, label="OGS")
ax_cmp.set_xlabel("time / s")
ax_cmp.set_ylabel("permeability / m$^2$")
ax_cmp.set_yscale("log")
ax_cmp.grid(True, which="both", alpha=0.3)
ax_cmp.legend()
ot.plot.utils.update_font_sizes(ax_cmp, fontsize=fontsize)
fig_cmp.tight_layout()
plt.show()
np.testing.assert_array_less(…
(click to toggle)
np.testing.assert_array_less(
err_rel,
1e-12,
err_msg="Kozeny-Carman relative error exceeds tolerance 1e-12.",
)
print("max relative error:", f"{np.max(err_rel):.3e}")max relative error: 9.466e-16
