Power Law Linear Creep

import contextlib
import json
import os
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np
import ogstools as ot

out_dir = Path(os.environ.get("OGS_TESTRUNNER_OUT_DIR", "_out"))
out_dir.mkdir(parents=True, exist_ok=True)

prj_file = Path("uniax_compression.prj")
ogs_model = ot.Project(input_file=prj_file, output_file=out_dir / prj_file)

A1 = 0.18  # d^-1
Q1 = 54e3  # kJ / mol
A2 = 6.5e-5  # m^3 K d^−1 # noqa: RUF003
Q2 = 24.5e3  # kJ / mol
dGrain = 5e-2  # m
sref = 1.0  # MPa


def BGRa(sig, T):
    return A1 * np.exp(-Q1 / (8.3145 * (273.15 + T))) * np.power(sig / sref, 5.0)


def PLLC(sig, T):
    T_K = T + 273.15
    return (
        A1 * np.exp(-Q1 / (8.3145 * T_K)) * np.power(sig / sref, 5.0)
        + A2 * np.exp(-Q2 / (8.3145 * T_K)) * sig / sref / np.power(dGrain, 3) / T_K
    )

lo_stresses = np.array([0.2e6, 0.6e6])
hi_stresses = np.array([2e6, 10e6])
Exps = {7.8: "blue", 14.3: "orange", 25: "lime", 60: "red", 100: "gray", 200: "purple"}

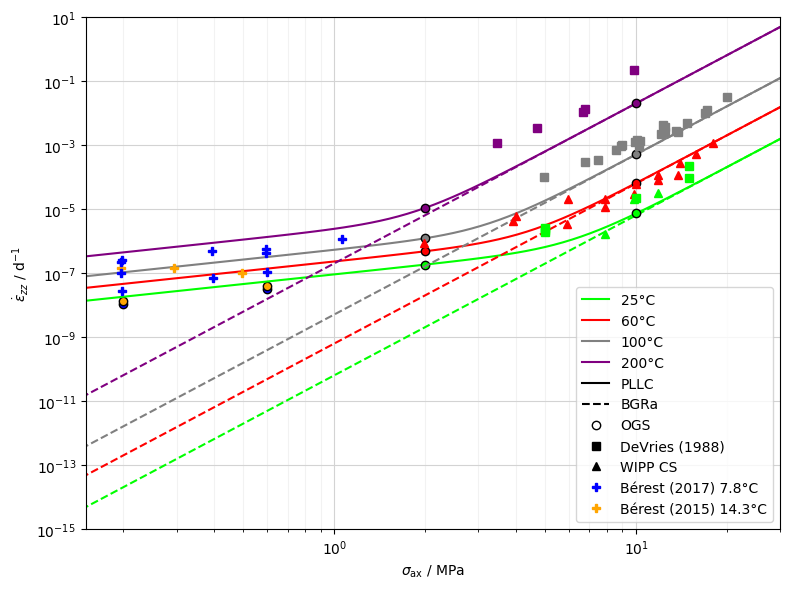

fig, ax = plt.subplots(1, 1, figsize=(8, 6))
ax.set_xlabel("$\\sigma_\\mathrm{ax}$ / MPa")
ax.set_ylabel("$\\dot{\\epsilon}_{zz}$ / d$^{-1}$")
ax.set(xlim=(0.15, 30), ylim=(1e-15, 1e1))
ax.minorticks_on()
ax.grid(which="major", color="lightgrey")
ax.grid(which="minor", color="0.95")

sigs = np.logspace(-1, 2, 100)
for temp, col in Exps.items():
    if temp >= 25:  # plot analytical curves
        ax.plot(sigs, BGRa(sigs, temp), color=col, ls="--")
        ax.plot(sigs, PLLC(sigs, temp), color=col, ls="-", label=f"{temp}°C")

    eps_dot = []
    ogs_model.replace_parameter_value("T_ref", str(temp + 273.15))
    stresses = hi_stresses if temp >= 25 else lo_stresses

    for stress in stresses:
        ogs_model.replace_parameter_value("sigma_ax", str(-stress))
        ogs_model.write_input()

        with contextlib.redirect_stdout(None):  # hide output
            ogs_model.run_model(args=f"-m . -o {out_dir}", logfile=out_dir / "out.txt")
            results = ot.MeshSeries(out_dir / f"{prj_file.stem}.pvd")

        eps_zz = results.point_data["epsilon"][:, 0, 2]  # pt0 z-component
        eps_zz_dot = np.abs(np.diff(eps_zz)) / np.diff(results.timevalues)
        eps_dot += [np.mean(eps_zz_dot[1:])]

    np.testing.assert_allclose(eps_dot, PLLC(1e-6 * stresses, temp), rtol=1e-4)
    ax.loglog(1e-6 * stresses, eps_dot, "o", c=col, mec="k")

ax.plot([], [], c="k", label="PLLC")
ax.plot([], [], c="k", ls="--", label="BGRa")
ax.plot([], [], c="w", ls="None", marker="o", mec="k", label="OGS")

markers = {"WIPP": "^", "DeVries": "s", "Berest": "P"}
with Path("reference_data.json").open() as ref_data_file:
    ref_data: dict[str, list[float]] = json.load(ref_data_file)
    for key, data in ref_data.items():
        temp = key.rsplit(" ", 1)[-1]
        stresses, eps_dot = np.array(data).T
        marker = markers[key.split(" ", 1)[0]]
        ax.loglog(stresses, eps_dot, marker, c=Exps[float(temp)])

ax.plot([], [], c="k", ls="None", marker="s", label="DeVries (1988)")
ax.plot([], [], c="k", ls="None", marker="^", label="WIPP CS")
ax.plot([], [], c="b", ls="None", marker="P", label="Bérest (2017) 7.8°C")
ax.plot([], [], c="orange", ls="None", marker="P", label="Bérest (2015) 14.3°C")
ax.legend()
_ = fig.tight_layout()
