Identify subdomains in bulk mesh.


identifySubdomains is a creation and check tool for the bulk_node_ids and bulk_element_ids mesh properties. These properties are needed for the boundary conditions and source terms application, defined on the subdomains of a “bulk” mesh.


Given a “bulk” mesh (Tests/Data/Mechanics/Linear/disc_with_hole.vtu) and a quarter circle mesh extracted manually we want to use the quarter circle mesh for heterogeneous boundary condition. OGS requires two mappings into the “bulk” mesh, one for the nodes and one for the elements.

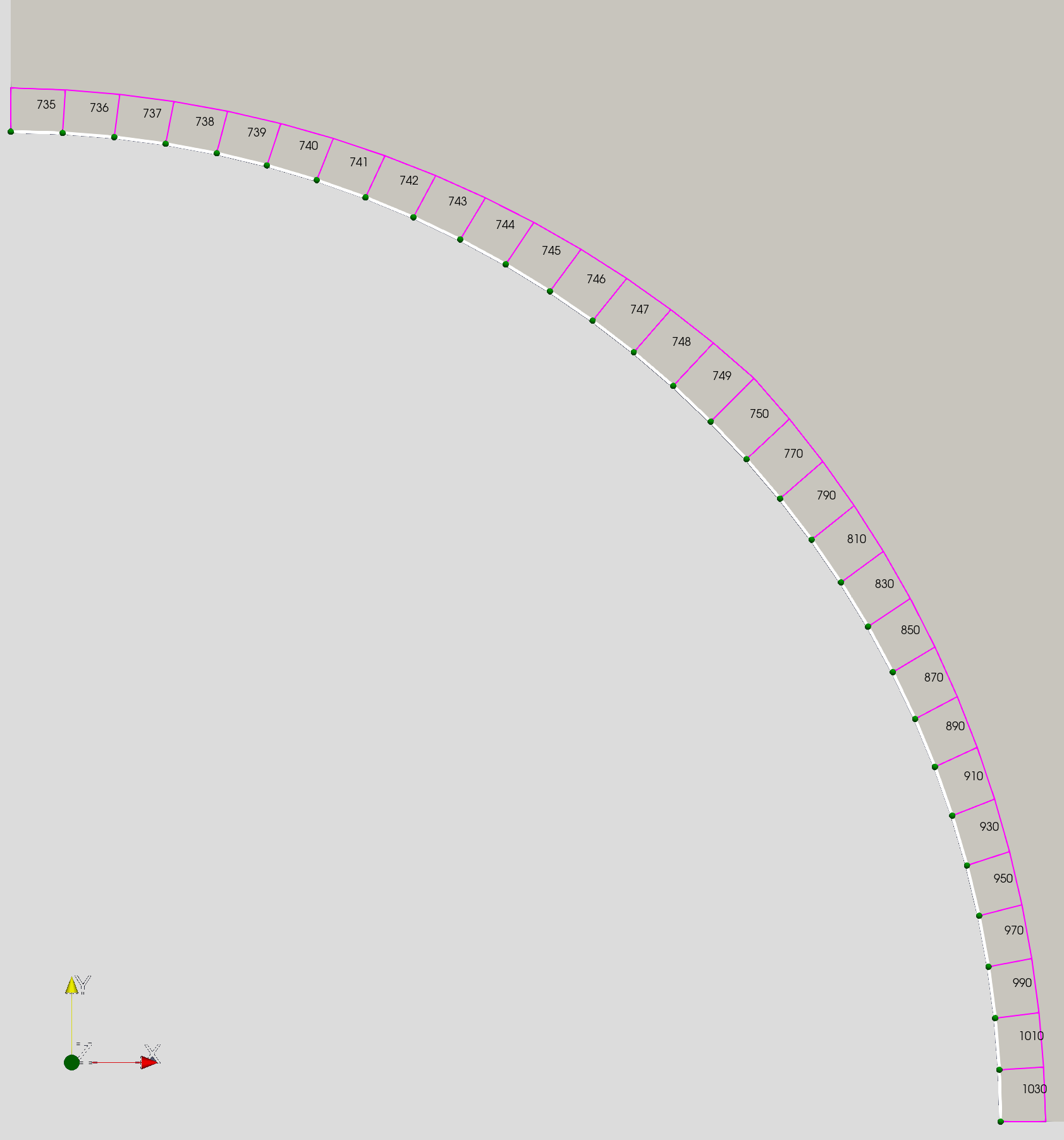

a part of the ‘bulk’ mesh with boundary element numbers
The figure shows a part of the ‘bulk’ mesh with boundary element numbers, and the quarter circle mesh shown as white line with green points.

To create these mappings we run

identifySubdomains -m Tests/Data/Mechanics/Linear/disc_with_hole.vtu -s 1e-6 -o
new_ -- quater_circle.vtu

The tool will first try to find all unique nodes in the “bulk” mesh using search radius 1e-6, and create the bulk_node_ids mapping upon success. Then the bulk_element_ids mapping is created by finding a unique element containing all the nodes of the subdomain element. The output file new_quater_circle.vtu will now contain both mappings and is prepared for usage as a boundary condition mesh.


  • The double dash is separating the subdomain meshes, so the input can have multiple subdomain inputs:

    identifySubdomains -m bulk.vtu -- bc1.vtu bc2.vtu source_term_meshes*.vtu
  • The output prefix -o can contain a path too and is relative to the current working directory.

This article was written by Dmitri Naumov. If you are missing something or you find an error please let us know.
