H2M process: Liakopoulos benchmark

Problem description


The Liakopoulos experiment was dealing with a sand column which was filled with water first and then drained under gravity. A sketch of the related model set-up including initial and boundary conditions is shown in the above figure. A detailed description of the underlying OGS model is given in Grunwald et al. (2022). Two hydraulic models have been compared; two-phase flow with a mobile and a Richards flow with an immobile gas phase coupled to mechanical processes. Due to the absence of analytical solutions various numerical solutions have been compared in the past (see Grunwald et al., 2022).

The model parameters are given in the below table.

Numerical solution

prj_file = "liakopoulos_TH2M.prj"
model = ot.Project(input_file=prj_file, output_file=prj_file)
model.run_model(logfile=f"{out_dir}/out.txt", args=f"-o {out_dir}")

 ogs -o /var/lib/gitlab-runner/builds/K-X1vcp78/0/ogs/build/release-all/Tests/Data/TH2M/H2M/Liakopoulos/ogs-jupyter-lab-h2m-2d-liakopoulos liakopoulos_TH2M.prj
['ogs', '-o', '/var/lib/gitlab-runner/builds/K-X1vcp78/0/ogs/build/release-all/Tests/Data/TH2M/H2M/Liakopoulos/ogs-jupyter-lab-h2m-2d-liakopoulos', 'liakopoulos_TH2M.prj']

<Popen: returncode: 0 args: ' ogs -o /var/lib/gitlab-runner/builds/K-X1vcp78...>

ms = ot.MeshSeries(f"{out_dir}/result_liakopoulos.pvd")

# plausibility checks
max_vals = {"gas_pressure": 1.02e5, "capillary_pressure": 1e4,
            "saturation": 1.0001, "displacement": 0.005}  # fmt:skip


def plot_sample(var: ot.variables.Scalar) -> None:
    fig, ax = plt.subplots(figsize=[6, 3], dpi=150)
    ax.set_xlabel(r"$y$ / m")
    ax.set_ylabel(var.get_label())
    for mesh, t in zip(ms, ms.timevalues, strict=True):
        line_mesh = mesh.sample_over_line([0, 0, 0], [0, 1, 0])
        vals = line_mesh.sample(mesh)[var.data_name]
        assert np.all(np.abs(vals) <= max_vals[var.data_name]), max(abs(vals))
        ax.plot(line_mesh.points[:, 1], var.transform(vals), label=f"{t=}", lw=2.5)
    ax.legend()
    ax.grid()
    fig.tight_layout()

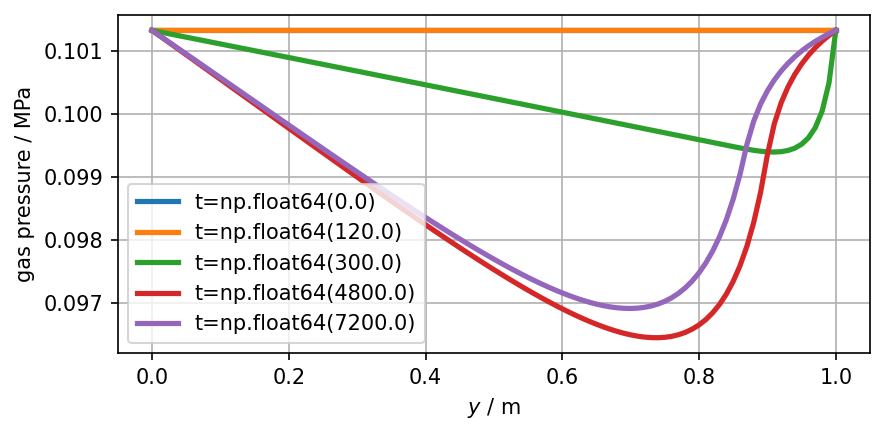

Gas Pressure

plot_sample(ot.variables.Scalar("gas_pressure", "Pa", "MPa"))

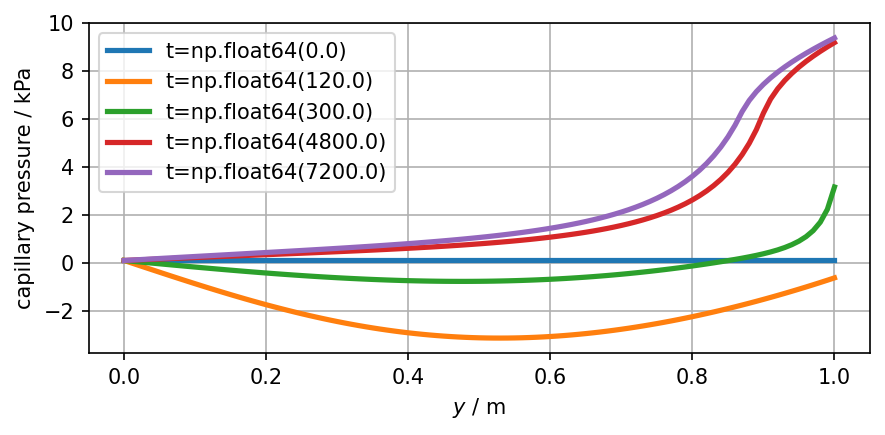

Capillary Pressure

plot_sample(ot.variables.Scalar("capillary_pressure", "Pa", "kPa"))

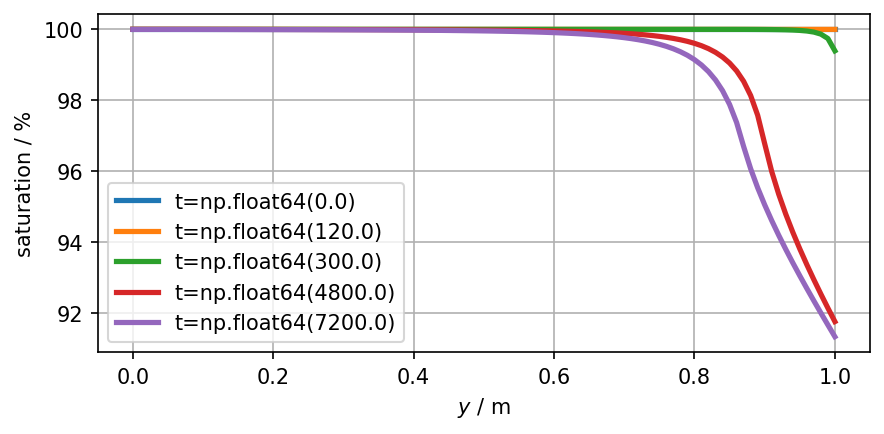

Saturation

plot_sample(ot.variables.Scalar("saturation", "", "%"))

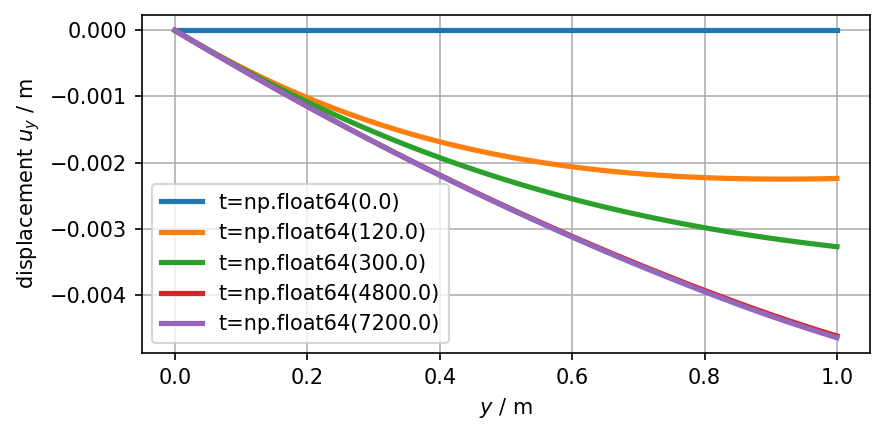

Vertical Displacement

plot_sample(ot.variables.displacement["y"])
