Ehlers; Single-surface yield function

Project file on GitLab

Problem description

We use a seven-parametric yield function for geomaterials to describe the plastic response. The traixial compression test is setup.

See this PDF for detailed problem description.

Results and evaluation

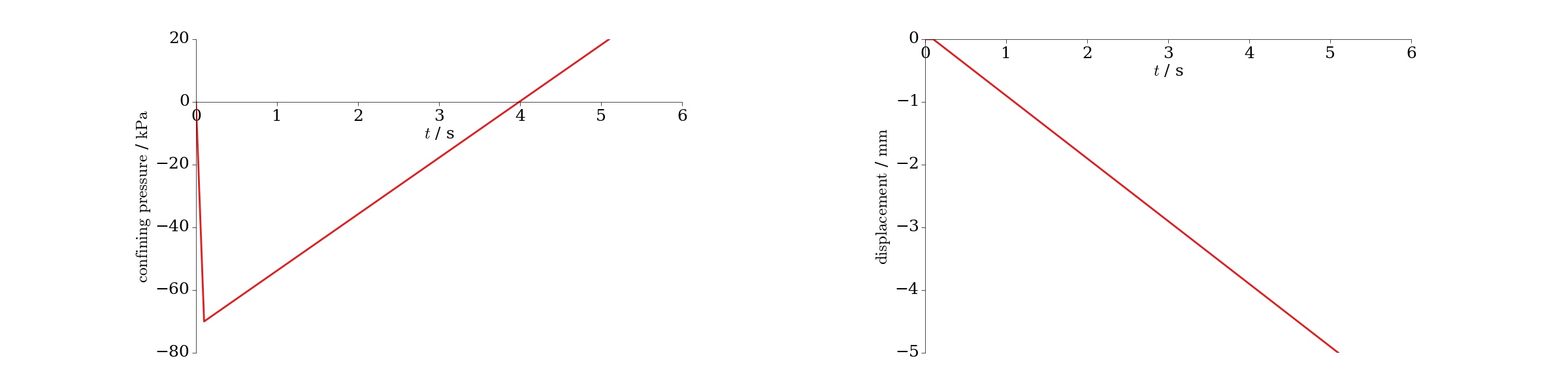

Triaxial compression test:

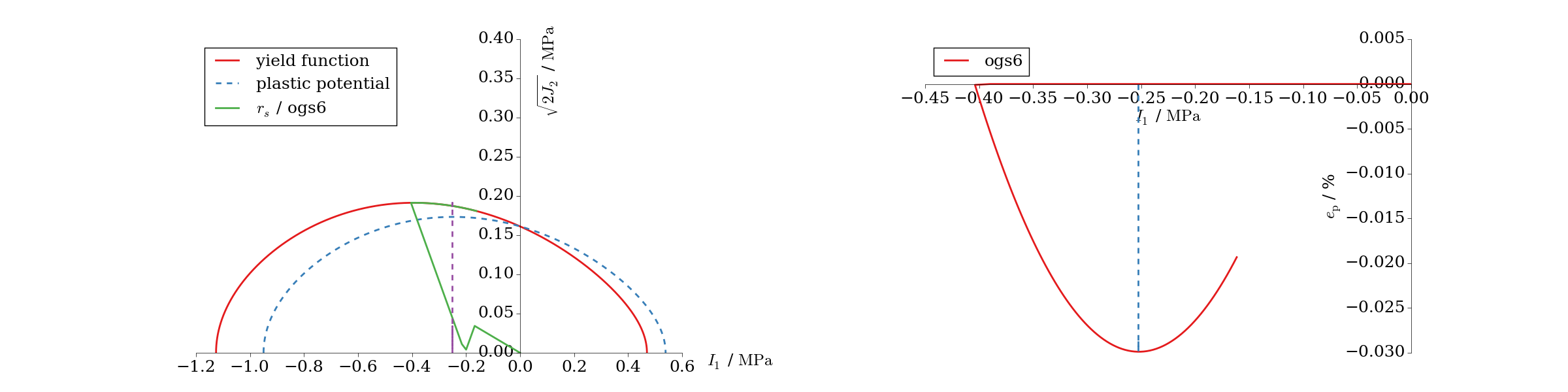

Variations of the stress states and the plastic volumetric strain with a monotonic loading process:


This article was written by Dmitri Naumov. If you are missing something or you find an error please let us know. Generated with Hugo 0.96.0. Last revision: February 16, 2022
