Map geometric object to the surface of a mesh

General

The tool MapGeometryToMeshSurface adjusts the z-coordinates of geometric points from a given geometry file my_geometry.gml such that they are located on the surface of a given mesh my_mesh.vtu and returns an updated geometry file my_mapped_geometry.gml.

MW: does the tool add points if necessary?

MW: what happens, if the geometry is spreading above the boundary of the mesh or not even close to the mesh?

Usage

MapGeometryToMeshSurface -m [my_mesh.vtu] -i [my_geometry.gml] -o [my_mapped_geometry.gml]

Simple application example

Often, the mesh resolution and the resolution of the geometric objects like polylines are different.

MW: so, what happens then?

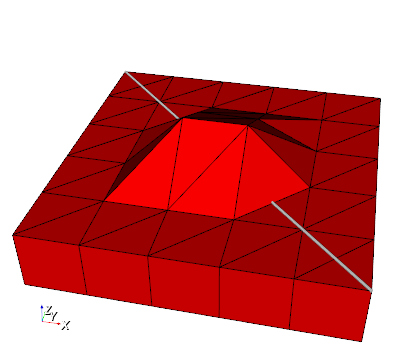

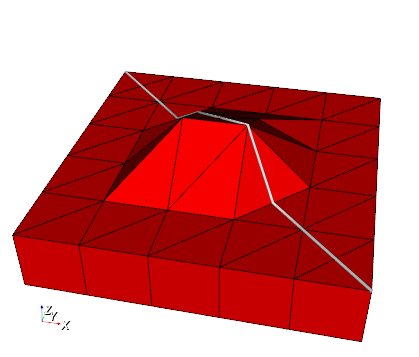

In the first figure such a situation is depicted. In the second figure the result of the application of the algorithm is shown.

Usage for the example:

MapGeometryToMeshSurface -m SubsurfaceMesh.vtu -i TestPolyline.gml -o TestMappedPolyline.gml

References

Karsten Rink, Lars Bilke, Olaf Kolditz: Visualisation Strategies for Environmental Modelling Data. Environmental Earth Sciences, 2014. DOI:10.1007/s12665-013-2970-2 download

MW: the citation is not used in the description
